35mm Concealed Door Hinge Jig, Quick Punch Cabinet Hardware Jig, Aluminum Alloy Cabinet Hinge Jig Hinge Hole Drilling Jig for Woodworking Cabinet & Door Hinge Installation

Features: 1. The concealed hinge jig is made of high quality aluminum alloy material, which is precision manufacturing, wear-resistant and durable, anti-rust and anti-corrosion, accurate positioning and convenient operation. 2. This cabinet door hinge jig can fix and drill precisely without measuring, prevents injuries during operation and improves work efficiency. 3. The distance from 35mm hole to edge is 5mm, which is suitable for most common hinges. 4. Install a 35mm hole opener, adjust the drilling depth to 12-13MM normally, and then lock the limit ring. 5. The Concealed Door Hinge Jig is adjustable to tension wooden boards of different thicknesses. It is a great tool kit for furniture factory and woodworking fans. Specification: Name: Door Hinge Jig Material: Aluminum Alloy Compatible Hinge Type: Φ1.38 in / 35mm Hinge Clamping Thickness Range: 0.59-0.98 in / 15-25mm Drilling Depth: 0.39-0.59 in / 10-15mm Margin Range: 0.12-0.28 in / 3-7mm Package Includes: 1 x hinge punch locator 1 x 35mm hole opener ( with limit ring) 1 x adjusting block 1 x spanner 1 x 2mm drill bit 1 x hexagon wrench Note: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. 2. Please allow slight dimension difference due to manual measurement.

• 【High-quality Aluminum Alloy】: This 35mm concealed hinge jig is crafted from high-quality aluminum alloy with a precision-machined surface for long-lasting durability.
• 【Specifically designed for 35mm concealed hinges】: Simplifies drilling by providing pre-set guides for hinge placement, reducing measurement errors. Ideal for repetitive tasks.

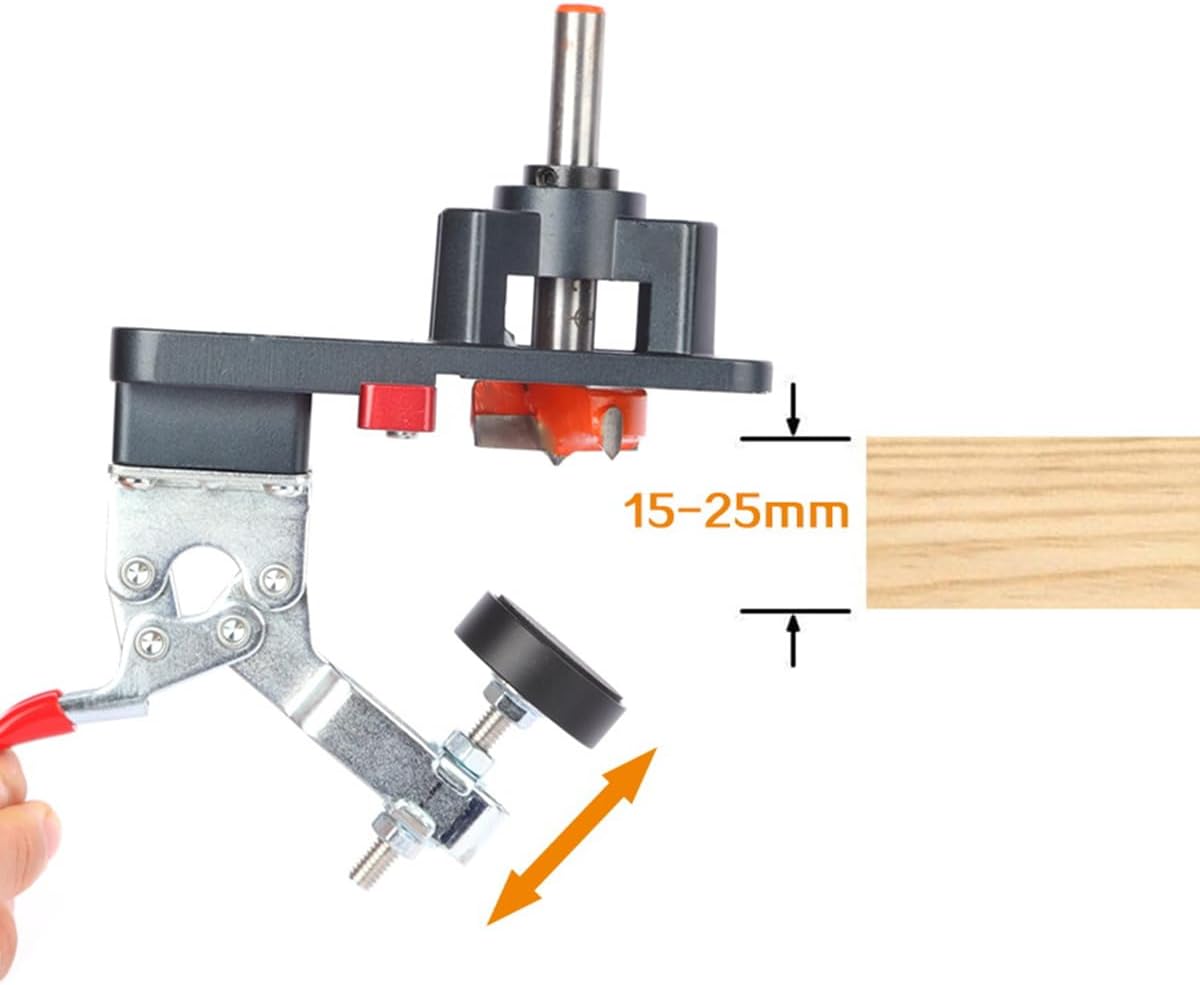

• 【Adjustable Drilling Jig】: This cabinet hinge jig clamps securely holds wood pieces between 15-25mm thick.Features an adjustable drilling depth of 10-15mm and edge margin of 3-7mm, easily customized to fit various project needs.
• 【Easy to Use】: Install a 35mm hole opener, adjust the drilling depth to 12-13MM normally, and then lock the limit ring. Easy to use with any standard drill, this hinge hole drilling tool is ideal for installing cabinet, door, and wardrobe hinges.

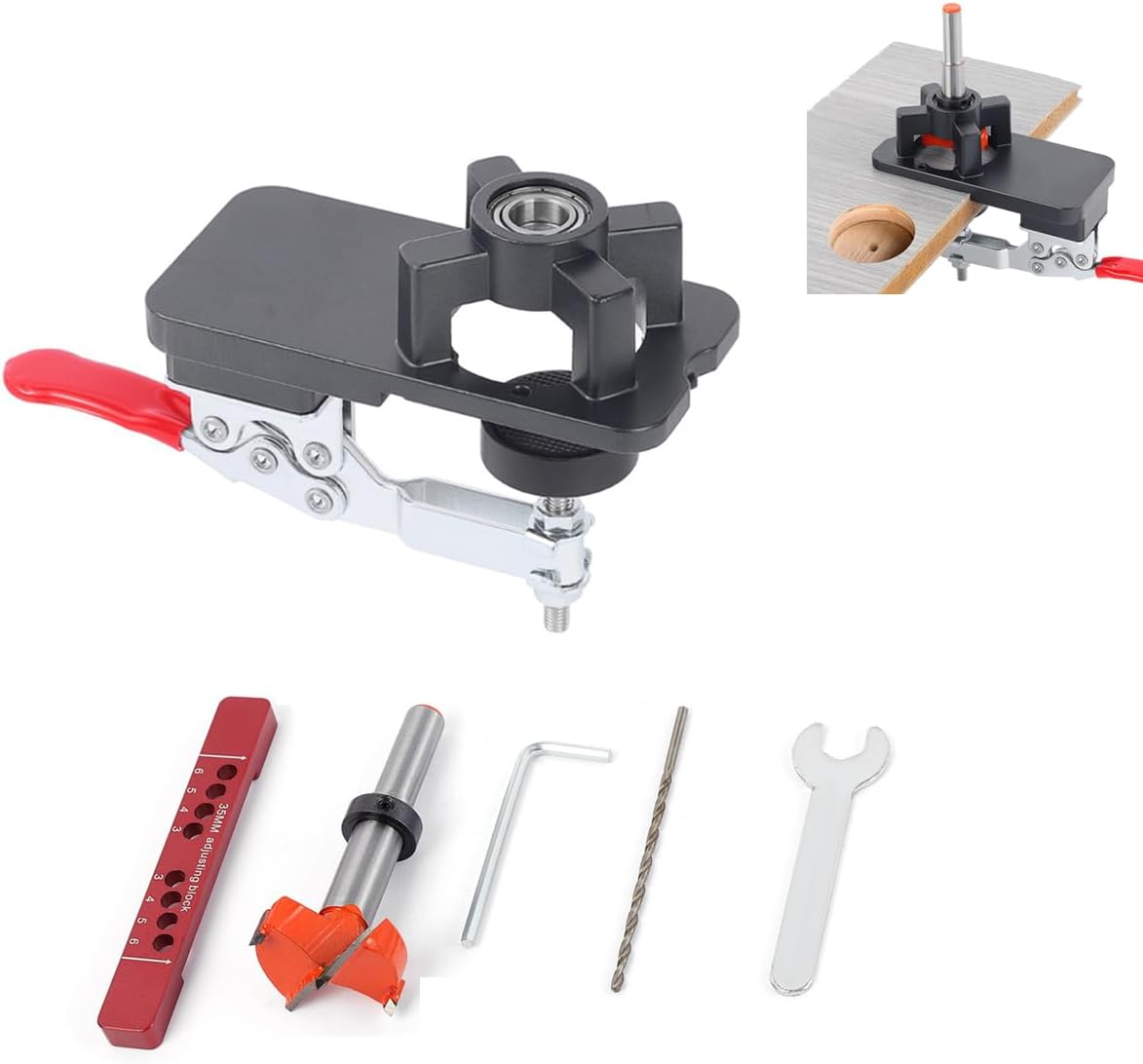

• 【The Set Includes】: 1 x hinge punch locator, 1 x 35mm hole opener ( with limit ring),1 x adjusting block, 1 x spanner, 1 x 2mm drill bit, 1 x hexagon wrench, Perfect for both professional woodworkers and DIYers.
